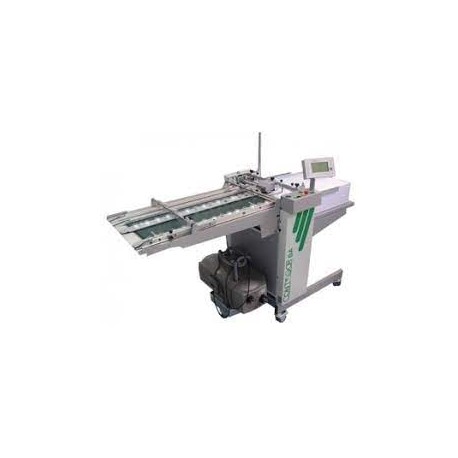

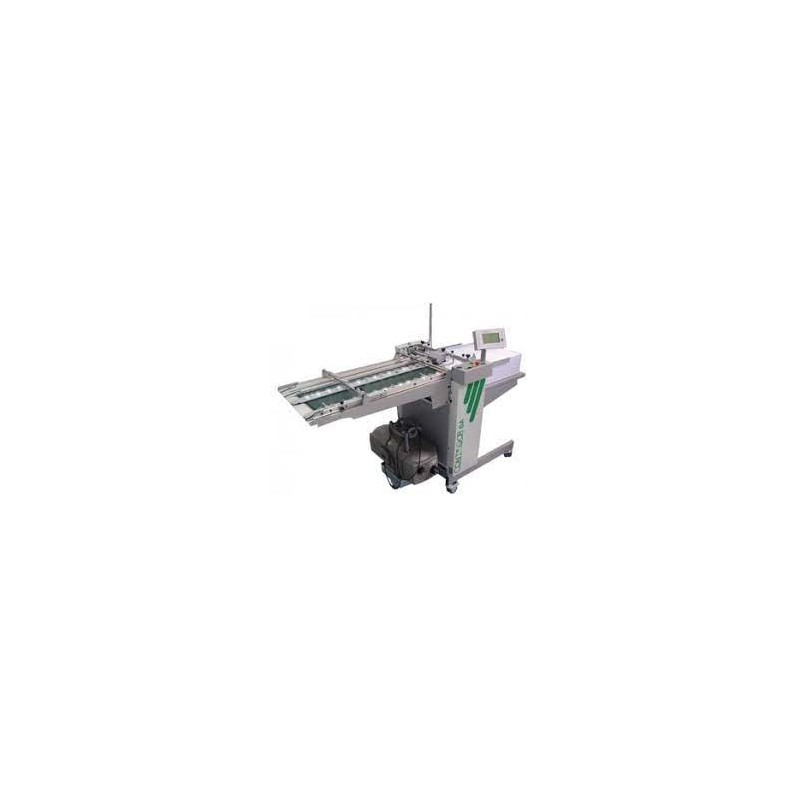

CONTAGOR BA59 AUTOMATIC FEEDER

1154

Used

RECONDITIONED MACHINE

Excellent solution for suction feeding connectable to machines (folders, splitters, etc.). High pile capacity: 700 mm. Excellent precision and registration upon delivery of the sheets. It has a double sheet detector system, totalizing counter, batch counter, and separation control between sheets. Minimum format 80 x 100 mm - maximum 590 x 650 mm

More details

1 Item

3 500,00 €

CONTAGOR B59 AUTOMATIC FEEDER

  • Due to their design and configuration, they are an excellent solution for feeding sheets to BZjet conveyor belts and also to be connected to other machines (folders, splitters, etc.).
  • The equipment is built in a single unit and on a table with wheels to facilitate its movement and coupling to other machines.
  • It has excellent precision and registration when delivering the sheets.
  • Incorporates a band outlet with micrometric registration by lateral ball guide.
  • Pile capacity is up to 700 mm
  • Feeds sheets from 60 to 400 g/m2
  • Includes a 40 m3/h rotary vacuum generator, dry operation.
  • Control panel, including functions of start, stop, speed adjustment, input tray lift, feed roller operation and output registration belt.
  • In addition, it includes an auxiliary panel, a double sheet detector system, a totalizing counter, a batch counter, and separation control between sheets.
  • Minimum format 80 x 100 mm
  • Maximum format 590 x 650 mm

ORIGIN OF THE EQUIPMENT:

Machine from our installed base.

EQUIPMENT STATUS:

Completely revised equipment, the exterior appearance is correct with some small scratches from use.

WORKLOAD:

It can withstand normal workload.

WARRANTY:

The equipment has a 6-month warranty against all manufacturing defects.
The warranty period begins with the same date of the sales invoice.
The warranty covers the labor and parts necessary for the proper functioning of the equipment.
The warranty does not cover wearing parts and consumables.

FACILITY:

The equipment is self-installable by the user.

At Ofiocasión we have specialized technicians who can install the equipment in your office or workplace and provide a training course for users.
